Light Field Video Sequence by Nagoya University





This test sequence (Tunnel_Train_2) is provided by



Fujii Laboratory

 Department of Information and Communication Engineering

Graduate School of Engineering, Nagoya University



Term of Use: ANY kind of publication or report using this sequence MUST refer to the following TWO references.

[1] http://www.fujii.nuee.nagoya-u.ac.jp/multiview-data/

[2] Mehrdad Panahpour Tehrani, Sho Mikawa, Shu Fujita, Toshiaki Fujii: g[MPEG-I Visual] Introduction to A New Test Sequence gTunnel_Train_2h Captured by Light Field Video Camerah

ISO/IEC JTC1/SC29/WG11 MPEG2018/ m41995, Gwangju, Korea, January 2018.



Copyright: ONLY Available for Academic Usage

Production: Nagoya University



Capturing Condition:

We have placed objects close to the camera as shown in Fig. 1 (right), so the disparity among views is distinguishable.

The detail of the capturing condition is in Fig. 1 (left).

The moving blue-doll is at collimation plane that should have disparity equal to 0 (about 40 cm from camera).

The nearest object is placed at about 40 cm from the camera.

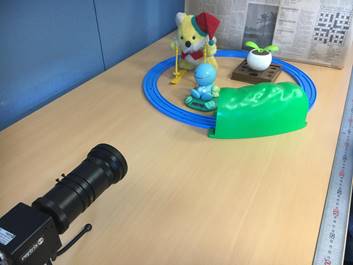

Fig. 1.  Capturing (left) scene, and (right) condition.



Specification of the Camera and the Main Lens:

Here, we introduce the specification of the focused plenoptic camera, and the main lens, used for the capturing.

Fig. 2 shows the camera and lens used in this capturing.

Tables 1 and 2 show the specifications of the Raytrix [2, 3] camera and the main lens, LMVZ166HC (by Kowa) [7], respectively.

The setting of the main lens is: focal length = 16mm, F-stop: F2.8.

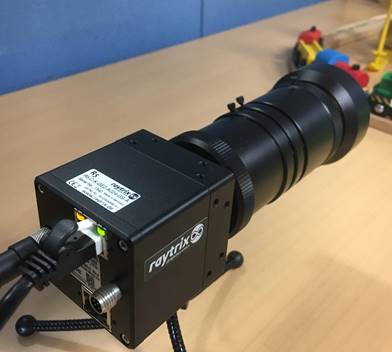

Fig. 2.  Camera (Raytrix R5-C- GigE-F2.4 (color)), and lens (LMVZ166HC (by Kowa)) used for capturing.



Table 1. Raytrix specification.



Product code (model number)

R5-C- GigE-F2.4

Resolution

2048 (H) x 2048 (V) 4 million pixels

Image sensor

Progressive scan CMOS 1 inch CMOSIS CMV 4000

Shutter

Global shutter

Pixel size

5.5 ƒΚm ~ 5.5 ƒΚm

Frame Rate (Raw)

25 fps @ Dual GigE

Resolution after reconstruction

Approximately 1 million pixels

Rx microlens

F 2.4

Number of pixels @ microlens diameter

23 pixels / 1 microlens

Number of depth layers

Approximately 90 layers

Depth of field

Approximately 6 times the usual lens

Lens mount

C mount

Output interface

Dual GigE

Viewer software

RxLive software (refocus, all focus, 3D, multi view, stereo display)

SDK

4D Light Field SDK (separately)

Usage environment

MS - Windows 7, CUDA, OpenGL 3.0, Compute Capability

Onboard GPU

Nvidia CUDA GPU GeForce GTX-980 or higher recommended

Power supply

Power supply from external power supply





Table 2. Main lens specification



Focal Length

16 - 64mm (4x)

Focal Length Sort Order

016

Lens Type

Varifocal

Image Size

1" (12.8 x 9.6 x 16mm)

Iris Range (F-Stop)

F1.8 – 16

Focusing Range

1.0m

Filter Thread Size

M58x0.75

Mount

C-mount



Test Sequence:

Below, in Figures 3, 4 and 5, we show the captured image (raw: Bayer color filter array & color) at frame 90 and with different magnifications.

Multiview data is generate using the method explained in [1].

Note that the captured data has 25fps, while the arranged data is set to 30fps.

The parameters of the captured data are as follows:



      Raw Video Data

·         Resolution: 2048x2048 pixels

·         Color: 8 bits, PNG

·         Frame rate: 30 fps

·         Number of frames: 300

·

Multiview Video of Raw Data

·         Viewpoints: 5 x 5 (25 views points, 2D arrangement)

·         Resolution per view: 920x880 pixels

·         Color: 8 bits, PNG

·         Frame rate: 30 fps

·         Number of frames: 300



     Color Video Data

·         Resolution: 2048x2048 pixels

·         Color: 24 bits, PNG

·         Frame rate: 30 fps

·         Number of frames: 300



Multiview Video of Color Data

·         Viewpoints: 5 x 5 (25 views points, 2D arrangement)

·         Resolution per view: 920x880 pixels

·         Color: 24 bits, PNG

·         Frame rate: 30 fps

·         Number of frames: 300





Camera parameters that are given by (SDK output)

·         Distance from the center of the image to the center of the central microlens

·         Diameter, and rotation angle of microlens, and lens array, respectively.

·         Depth information for the three type of the mircolenses

·         Distance between different types of microlenses

·         The thickness of the microlens boundary line

·         Lenses Distortions



Tunnel_Train_2r_f0000

Fig. 3.  Captured raw image at frame 90 by Raytrix, R5-C- GigE-F2.4.

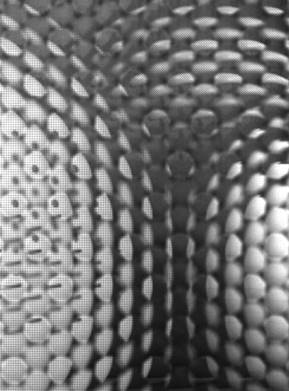

Fig. 4.  Magnified region of an area in Fig. 3.





Fig. 5.  Magnified region of an area in Fig. 4





Test Data:

Lenslet: Download Raw

Multiview: Download Raw Multiview



Lenslet: Download Color

Multiview: Download Color Multiview



Raytrix SDK output, xml: Download Camera Parameter



Converter:

Lenslet to Multiview Conversion Tool (executable): Download



Note: This executable tool is only tested on Windows 10.



Reference

[1] Mehrdad Panahpour Tehrani, Sho Mikawa, Yuto Kobayashi, Shu Fujita, Keita Takahashi, Toshiaki Fujii: g[MPEG-I Visual] Development of a 3D Imaging System Using Light Field Camera and Tensor Displayh, ISO/IEC JTC1/SC29/WG11 MPEG2017/ / M41244, July 2017, Torino, Italy.

[2] http://raytrix.de/

[3] Christian Perwaß and Lennart Wietzke: gSingle Lens 3D-Camera with Extended Depth-of-Fieldh, proceedings of SPIE - The International Society for Optical Engineering 8291:4- · February 2012.

[4] Gordon Wetzstein, Douglas Lanman, Matthew Hirsch, Ramesh Raskar: gTensor Displays: compressive light field synthesis using multilayer displays with directional backlightingh, TOG, vol. 31, no. 4, 2012.

[5] Ren Ng, Marc Levoy, Mathieu Bredif, Gene Duval, Mark Horowitz, Pat Hanrahan: gLight Field Photography with a Handheld Plenoptic Camerah, Stanford University Computer Science Tech Report CSTR, vol. 2, no. 11, 2005.

[6] Todor Georgiev, and Andrew Lumsdaine: gFocused Plenoptic Camera and Renderingh, Journal of Electronic Imaging, vol. 19, no 2, 2010.

[7] http://www.kowa-optical.co.jp/fa/e/





Acknowledgment

This work is partially supported by Grant-in-Aid for Scientific Research (C) registered number 16K06349.
